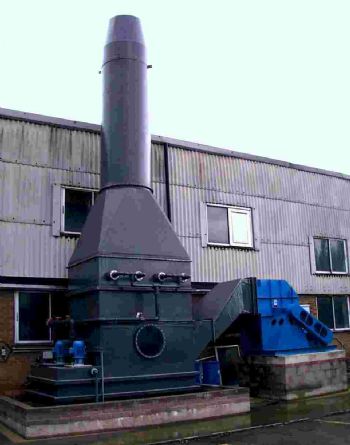

Multivent Scrubbers for Chemical Waste Treatment

The Multivent scrubber is a highly efficient absorber which offers high efficiency, competitive pricing and low operating and maintenance cost operation. The scrubbers, which are capable of handling solid, liquid and gaseous pollutants, are non-cloggable, unlike conventional packed bed scrubbers, due to the unique design of the unit. Thus maintenance costs are negligible compared to conventional units.

Multivent Scrubbers for Chemical Waste Treatment

The Multivent scrubber is a new gas liquid contactor comprising a matrix of elementary modules referred to as cell, in which gas and liquid circulate vertically under counter-current flow.

Liquid is introduced at the top of the cell, gas flows vertically from the bottom between the cell walls. In each cell, placed in series, gases are successively washed by the mixing of the two phases.

A cell is formed by two rectangular sections, one convergent and one divergent, the intersection between the two forming the CELL NECK. Several cells placed in series form a FLOW CHANNEL.

The cell is characterised by its height, width, length and the width and the shape of the cell neck.

The hydrodynamic operation of the MULTIVENT SCRUBBER. can be divided into three flow ranges:

The first being "dripping flow". This occurs when the gas and liquid flowrates are very low. No interaction occurs between the fluids. Each flows as if it were independent of the other . The liquid flows like a film over the surface of the cells.

The second phase is known as "wave flow". This occurs when either the gas or liquid flowrate is increased to a particular value which causes a small increase in pressure drop through the cell. An unsteady state temporarily develops exhibiting wave flow phenomenon.

The final phase is known as "hanging flow" and occurs as the flowrates increase and the waves of the previous flow regime meet at the cell neck. The phenomenon produces a sudden increase in pressure drop and liquid retention in the cell. Hanging flow occurs in all cells arranged in series.

This is characterised by liquid accumulation at the top of a cell. The phenomenon occurs at virtually constant gas side pressure drop, independent of the gas or liquid flow rates in the cell.

Operating Regime

The operating regime of the Simdean Multivent scrubber is defined between the minimum flowrate required for hanging flow and the onset of flooding of the cells i.e. when the liquid flowrate is greater than the critical value. In practice, for a mass ratio of (liquid to gas flow) L/G = 1, the regime occurs between 80 and 120% of the nominal flow rate of the gas treated by MULTIVENT SCRUBBER.

Pressure Drop

Pressure drop in the operating regime is between 20 and 35mm WC per cell for a L/G ratio between 0.8 and 1.2 for the nominal flow rate of the gas treated by the Multivent scrubber. The pressure drop of one cell is additive, which means that for five cells placed in series the total pressure drop will be between 100 and 170 mm WG depending on the L/G ratio adopted. In practice units are normally fitted with either three, five or eight cells placed in series depending upon the application

Multivent Scrubber Efficiency

Absorption efficiency

The absorption efficiency of a cell depends on the scrubbing conditions and on the type of chemical reaction required. In the case of an irreversible and almost instantaneous chemical reaction like sulphur dioxide absorption in aqueous sodium hydroxide, the absorption efficiency of a cell in the scrubber operating regime is from 55 to 65%. For five cells placed in series, the efficiency can reach 99.5%

Particulate removal

In a survey carried out by Bayer in Germany on more than 25 scrubbers results showed that the scrubbing efficiency depends on the energy used. For a given energy consumption, the particulate removal has an efficiency limit, whatever the scrubbing system. MULTIVENT SCRUBBER is situated in the range of average energy consumption and its efficiency limit is situated around the micron.

Experiments have been carried out with silica J + K type density 1.7, whose particle size distribution extends from 1.3 to 13.1 microns with a maximum of 5 microns. The efficiency obtained with five cells arranged in series in about 98.7% for a dust concentration of 1950 mg/Nm3 at the scrubber inlet.

Figures quoted above are, in simple cases, quite definite. Problems met in practice are seldom so simple, and their physical and chemical parameters are not so definite.

Notably, with regard to odours, the numbers of odoriferous substances is often important, particularly if they do not have similar chemical characteristics.

Unit Sizing

Volumetric capacity is obtained by placing the cells in PARALLEL

Absorption or Removal efficiency is obtained by placing the cells in SERIES
