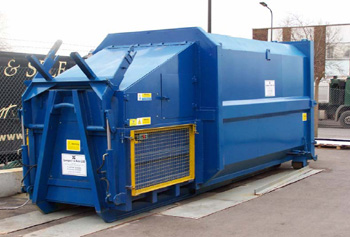

Durapac CB 28 - Large Portable Compactor

Requiring little space and easily relocated, this mobile compactor has many advantages for the right client. The Durapac CB-28 Portable Compactor is a leak proof machine designed to compact and contain wet wastes quickly and efficiently. It has a full height rear door seal and enclosed hopper to improve hygiene and reduce odours.


Durapac CB 28 - Large Portable Compactor
Contact

Technical details

Portable compactors
require less space, can be relocated easily and have no special site requirements. The integral compactor means no spillage as the rear door seals retain the liquid and the Durapac machines are fully leak proof. Portable liquid compactors keep sites free of leaks and transportation to the disposal point can be carried out safely and cleanly enabling a reduction in payloads and landfill tax liability.

Portable compactors can be loaded by hand with safety-interlocked doors or with a hydraulic loader and suitable wheeled bins from 120 litres to 1100 litres. It is also possible to integrate a portable machine with a fixed dock loading system, a through the wall chute system or a forklift loading system.

All portable Durapac compactors are leak proof machines designed to compact and contain wet wastes quickly and efficiently. With their heavy duty construction, large feed aperture, fast cycle time and the highest compaction force in their class, they will out perform and out last all others.

Standard features include:

  • Hardox wear resistant floor
  • Integral hydraulic power pack with three built in levels of protection
  • Key switch operation
  • Emergency stop
  • Cycle selector
  • Auto shut off
  • 3/4 full and full warning lights

    Full height rear door seal and enclosed hopper to improve hygiene and reduce odours.

    Technical data: CB-28

    Container capacity - 22.3 m³
    Charge box volume - 1.66 m³
    Volume per stroke - 1.29 m³
    Volume per hour - 154.8 m³
    Cycle time - 30 secs
    Compaction Force - 41 tonne
    Operating Pressure - 2300 psi
    Clear aperture length - 1250 mm
    Clear aperture width - 1480 mm
    Charge box depth - 900 mm
    Ram depth - 700 mm
    Penetration into container - 300 mm
    Overall length - 6500 mm
    Overall width - 2448 mm
    Overall height - 2340 mm
    Motor rating - 7.5 kw
    Power supply - (415v, 3 phase + e + n) 32A M50 (or type D)

    Machines are supplied with up to 6m of 5 core, 4mm, braided, flexible control cable complete with 5-pin socket mobile socket. The contents of this leaflet are subject to variation and modification without notice.
