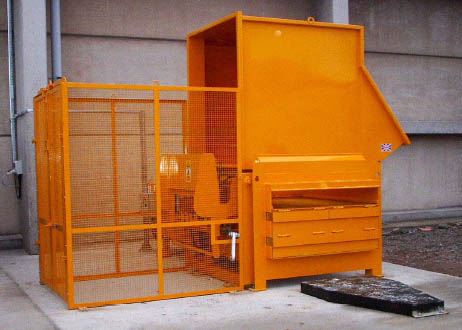

Durapac CB-35 - Mid Range Static Compactor

The new Durapac CB-35 Static Compactor is designed to handle medium to high volumes of industrial and commercial waste quickly and efficiently. Specified to suit your needs, loading can be by hand, bin lift, forklift, chute or special application.


Durapac CB-35 - Mid Range Static Compactor
Contact

Technical details

Durapac static compactors have large feed apertures, fast cycle times and the highest compaction force in their class, they will out perform and out last all others. All Durapac machines are heavy duty and manufactured and tested to the highest standards. They are fully CE approved, rated to IP65 for installation and use outside and are supplied with a 1 year comprehensive warranty.

Standard Options:

Hand Loading
To conform with H.S.E. requirements a loading hopper must be fitted with a charge box. This can either have an interlocked lid, which renders the machine inoperable if opened, or an interlocked safety bar, which cuts the machine operation if a body pressure in excess of 15psi is exerted against it.
Forklift Loading
Where the machine is to be loaded by forklift (usually with self-dumping or drop bottom bins) a reinforced loading hopper is fitted. The loading height is normally far higher than that required for hand loading hoppers.
Chute Loading
Chutes can be designed to feed the compactor from the side or the rear, generally at an angle of more than 40 degrees.
Dock Loading
In cases such as distribution centres, a system can be put in place to maximise efficiency, tidiness, and the effectiveness of your recycling program.
Hydraulic Loaders
Hydraulic loaders are available to suit many different sizes and types of wheeled bins. Where a large site is in need of compaction, the use of wheeled bins will help reduce double handling and labour costs plus improve tidiness and safety.

Technical data: CB-35

Motor rating 7.5 kw
Charge box volume 1.85m³
Volume per stroke 1.44 m³
Volume per hour 148 m³
Cycle time 35 secs
Compaction Force 35 tonne
Operating pressure 2300 psi
Clear aperture length 1400 mm
Clear aperture width 1450 mm
Charge box depth 900 mm
Loading height 800 mm
Aperture height 920 mm
Ram depth 700 mm
Penetration into container 355 mm
Overall length (to container face) 3450 mm
Overall width 1700 mm
Height to top of charge box 1320 mm
Dock height 1320 mm
Power supply (415v, 3 phase + e + n) 32A M50 (or type D)
Oil reservoir capacity 120 litres
Total weight 2,950 kg

Machines are supplied with up to 4m of 5 core, 4mm, braided, flexible control cable complete with 5-pin socket. The contents of this leaflet are subject to variation and modification without notice.

With its heavy duty construction, large feed aperture, fast cycle time and the highest compaction force in its class, it will out perform and out last all others.

Standard features include a Hardox wear resistant floor, integral hydraulic power pack with three built in levels of protection, key switch operation, emergency stop, cycle selector, auto pin off switch, auto shut off, ¾ full and full warning lights.

All Durapac machines are manufactured and tested to the highest standards. They are fully CE approved, rated to IP65 for installation and use outside and are supplied with a 1-year comprehensive warranty.
