ACP PRECAST CONCRETE ARROW PANELS

Precast concrete Arrow panels are used to construct bunkers and division walls on an existing floor or where being able to reconfigure the layout in the future is a useful benefit.


ACP PRECAST CONCRETE ARROW PANELS
Contact

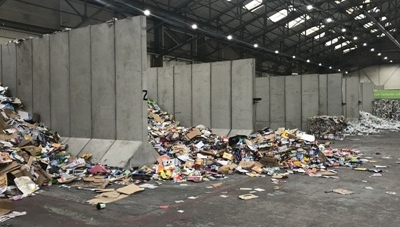

ACP Arrow Panels are designed to produce robust, durable division walls that are readily relocated. The unit's tongue and groove joints lock together on placement without the need of complex steel connections. Stability is provided by the massive dead weight base with cast-in fork lift recesses to enable fast, easy relocation. Arrow panels are available in 1m widths & at standard heights of 2.4m, 3m, 3.6m and 4m with other heights  on  request.

Arrow panels are suitable for loading from either or both sides. In permanent locations the units may be fixed to the floor and joints sealed. Note: 4m high Arrow Panels must always be fixed to the floor.

'L' Arrow Panels are suitable for perimeter walls of existing buildings or where space is restricted. These are always fixed to the floor.
