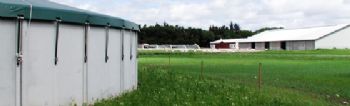

Agri-Tank slurry storage

The Agri-Tank is designed to meet all your slurry storage requirements. Available in a range of sizes, our standard product range offers wall heights of 3,4,5, and 6 metres, with diameters from 4.6 to 50+ metres. Other sizes are available on request.


Agri-Tank slurry storage
Contact

The Agri-Tank is one of the products offered by A·Consult who are the market leaders in the Design, Manufacture and Installation of Precast Concrete Storage Tanks.

The tank is constructed from extremely durable precast concrete panels and unlike most other slurry storage systems should require no repairs or remedials for the duration of it’s service life.

Ancillary Equipment

Ancillary equipment such as access ladders and platforms, as well as PVC covers can be attached and supported by the wall structure. In short Agri-Tank provides you with the complete solution for your total storage needs.

  • Base centre strengthening to support roof column.
  • Perimeter sump and pipe work for discharge.
  • Platform and access ladder.
  • Lockable Sluice valve.
  • Openings through panel walls to facilitate mixers or umbilical draw off.

Ancillary Equipment

Ancillary equipment such as access ladders and platforms, as well as PVC covers can be attached and supported by the wall structure. In short Agri-Tank provides you with the complete solution for your total storage needs.

Technical Features

The Agri-Tank is constructed using high specification concrete panels held together by a series of circumferential 7 wire PE-sheeted grease impregnated tendons. The tendon is coated in highly corrosion-resistant grease conforming to the recommendations of both the American Post Tensioning Institute and the FIB.

The PE-Sheeting is formed by the continuous hot extrusion of high density polyethylene or polypropylene to a minimum radial thickness of between 1.00mm and 2.00mm, again conforming to recommendations of both the American Post Tensioning Institute and the FIB.

Seals between each precast panel are made using our patented EPDM compound that when erected form a gasket between the panels and eliminate the risk of leakage.

Any storage tank will be subject to movements, these can be caused by high or low internal pressure from a full or empty tank, our EPDM seal has elastic qualities, which absorb any movement and provide further protection from different earth pressures or all year round weather conditions.

Our EPDM is extremely tough and retains its elasticity even when constantly subjected to ammonia and ultraviolet light.
