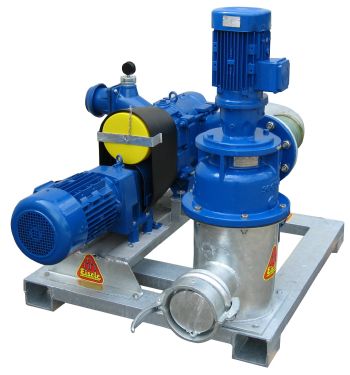

Rotary Lobe pumps

Positive Displacement Rotary Lobe Pump For fixed installation or Mobile units Electric, Mechanical, Hydraulic drive options Low speed, High output. Simple effective robust design

Rotary Lobe pumps


  • Rotary Lobe pump (positive-displacement)
  • Output of materials up to approximately  30 % dry matter
  • Lobe with metal core and rubber encasing
  • P.T.O. drive or electric drive
  • Capacity from 450 l/min. up to 6000 l/min (depends on the medium)
  • Pressure output 4-10 bar
  • Simple and quick change of the impeller by opening of the four ring nuts of the cover, easy to handle by one person.
  • Free choice of suction- and delivery side by changing cardan shaft input
  • In series with Hardox - wearing plates on the face of the pump housing and on the cover, with replacement wearing parts, through bolt construction.
  • Light weight Aluminum cover with Hardox wear plate insert

  • N.B. The information contained in this entry is provided by the above supplier, and does not necessarily reflect the views and opinions of the publisher
